Characteristics and advantages:

• Suitable for conveyance of various types of tableware, more flexible loading method.
• Conveyor automatically delivers tableware into Operation Room, which reduces operator’s labor intensity.
• Equipped with international brand gear motor and frequency converter, with frequency conversion and stepless speed regulation and soft-starting function, running stably and reliably.
• Flexible module combination design, customize size and turning angle according to the on-site space.
• Circuit over-loading and electricity leakage safety protection design ensures safe operation.
• Real-time transfer speed digital display, external speed governing potentiometer, the operation is simple and clear at a glance.

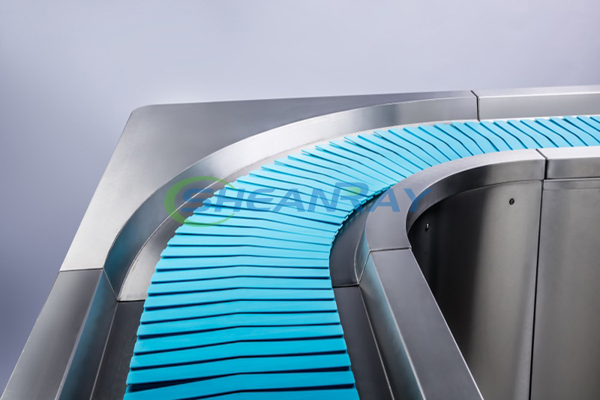

• Standard slat belt’s automatic cleaning function enables conveyor’s slat belt to keep hygienic and clean in operation.
• Slat belt that can be lifted easily is convenient for cleaning.
• Optional throwing cabinet for small parts,  noise enclosure and prewash sink etc., to meet the demands of different clients.

Requirements on installation connection:

• Requirement on electricity installation: 0.75~1.5KW/220V/1Ph
• Diameter of water inlet: 1/2’’
• Diameter of water drainage: Φ50mm

Applicable places:

• Large-scale employees’ canteen, school and other places

Parameters:

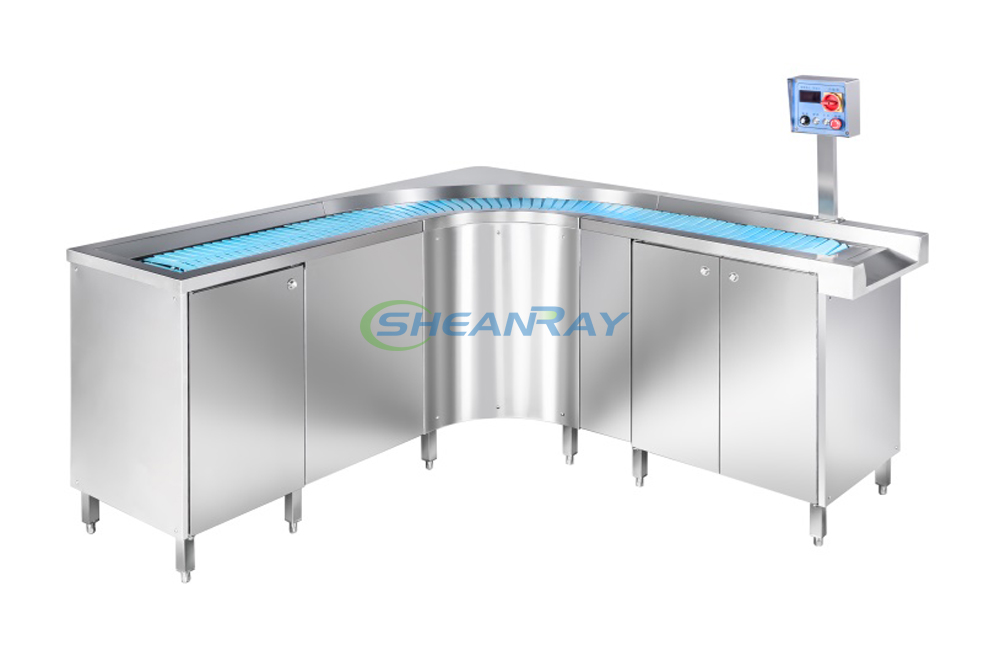

    Model                         CB580L
    Width of tableware        ≤450mm
    Transmission speed        5~20M/min
    Turning angle               85°~180°
    Height                         880mm/920mm
    Power supply                220V/1Ph
    Power                          0.75~1.5KW
    Turning radius              ≥650mm
